OCL-140S 水平式雙給袋包裝機 Horizontal double-to-bag packaging machine

主要特點：Main feature

1、粉料物料計量包裝係統有水平式給袋包裝機與下料係統組成；

1. The powder material metering and packaging system consists of a horizontal bag-feeding packaging machine and a blanking system;

2、放袋槽放袋方便簡單，配備自動壓袋裝置；

2. The bag-putting slot is convenient and simple for bag-putting, equipped with automatic bag-pressing device;

3、配置進口壓力感應裝置，達到不下料不封的效果，節約包裝袋；

3. Equipped with imported pressure sensing device to achieve the effect of no blanking and no sealing, saving packaging bags;

4、雙給袋包裝係統，包裝速度更快、重量更準確，采用高質量的配件，保持機器的持久穩定；

4. Double-feed bag packaging system, faster packaging speed, more accurate weight, and high-quality accessories to keep the machine stable;

5、采用彩色觸摸式顯示屏，簡單操作，多功能設計；

5. Adopting color touch screen, simple operation and multifunctional design;

6、機器采用不鏽304L外觀，碳鋼機架部分與部分配件做耐酸、耐鹽防腐處置層加工。

6. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant, salt-resistant and anti-corrosion treatment layer.

7、選材要求：大部分配件以模具化生產成型，主要材料選用304不鏽與氧化鋁。

7. Material selection requirements: Most of the accessories are formed by mold production, and the main materials are 304 stainless steel and alumina.

8、可選配各種打碼、噴碼、排氣、衝孔係統；

8. Various coding, coding, exhaust, and punching systems are optional;

適用範圍：Scope of application

本機包裝類型：Native packaging type

01.固體類：糖果、花生、青豆、開心果、膨化食品等固體類物料的包裝。

01. Solids: packaging of solid materials such as candies, peanuts, green beans, pistachioses, puffed foods, etc.

02.顆粒類：豆類、結晶味精、結晶鹽、顆粒狀藥品、膠囊、種子、化學調料、雞精、瓜子、農藥、肥料、飼料等顆粒類物料的包裝。

02. Granules: beans, crystalline monosodium glutamate, crystalline salt, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed and other granular materials.

03.粉劑類：調味品、奶粉、素食粉、五穀粉、葡萄糖、生粉、麵粉等粉劑物料的包裝。

03. Powders: packaging of condiments, milk powder, vegetarian powder, grain powder, glucose, corn powder, flour and other powder materials.

04.液體類：醬油、米醋、果汁、飲料等液體類物料的包裝。

04. Liquids: packaging of liquid materials such as soy sauce, rice vinegar, fruit juice, and beverages.

05.醬體類：番茄醬、辣椒醬、豆瓣醬等醬體類物料的包裝。

05. Sauce body: packaging of ketchup, chili sauce, bean paste and other sauce body materials.

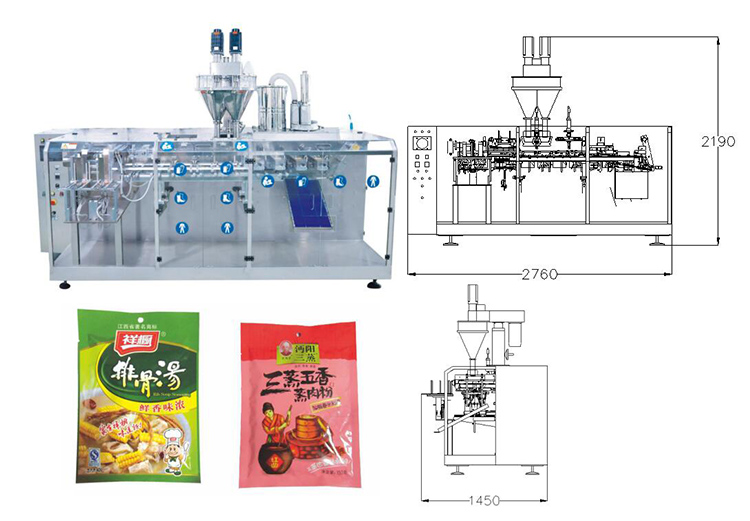

本機技術參數：Technical parameters of this machine

本機主要配置：Main configuration of this machine

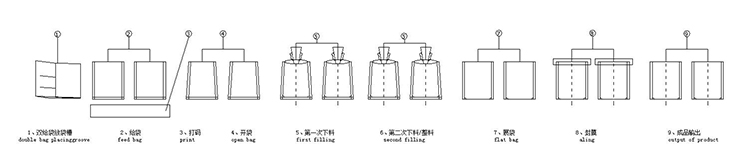

包裝工藝流程圖：Packaging process flow chart
