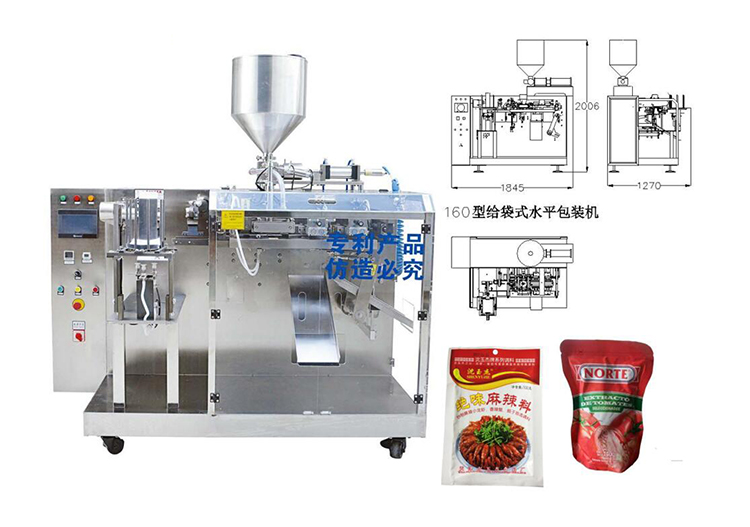

OCL-160水平式單給袋包裝機 Horizontal single-to-bag packaging machine
全國服務熱線：
159-1595-6886（微信同號）主要特點：Main feature
1、粉料物料計量包裝係統有水平式給袋包裝機與下料係統組成；
1. The powder material metering and packaging system consists of a horizontal bag-feeding packaging machine and a blanking system;
2、放袋槽放袋方便簡單，配備自動壓袋裝置；
2. The bag-putting slot is convenient and simple for bag-putting, equipped with automatic bag-pressing device;
3、配置進口壓力感應裝置，達到不下料不封的效果，節約包裝袋；
3. Equipped with imported pressure sensing device to achieve the effect of no blanking and no sealing, saving packaging bags;
4、給袋式包裝係統，包裝速度更快、重量更準確，采用高質量的配件，保持機器的持久穩定；
4. The bag-type packaging system, the packaging speed is faster, the weight is more accurate, and the high-quality accessories are used to maintain the long-lasting stability of the machine;
5、采用彩色觸摸式顯示屏，簡單操作，多功能設計；
5. Adopting color touch screen, simple operation and multifunctional design;
6、機器采用不鏽304L 外觀，碳鋼機架部分與部分配件做耐酸、耐鹽防腐處置層加工。
6. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant, salt-resistant and corrosion-resistant treatment layer.
7、選材要求：大部分配件以模具化生產成型，主要材料選用304不鏽與氧化鋁。
7. Material selection requirements: Most of the accessories are formed by mold production, and the main materials are 304 stainless steel and alumina.
8、可選配各種打碼、噴碼、排氣、衝孔係統；
8. Various coding, coding, exhaust, and punching systems are optional;
適用範圍：Scope of application
本機包裝類型：Native packaging type
01.固體類：糖果、花生、青豆、開心果、膨化食品等固體類物料的包裝。
01. Solids: packaging of solid materials such as candies, peanuts, green beans, pistachioses, puffed foods, etc.
02.顆粒類：豆類、結晶味精、結晶鹽、顆粒狀藥品、膠囊、種子、化學調料、雞精、瓜子、農藥、肥料、飼料等顆粒類物料的包裝。
02. Granules: beans, crystalline monosodium glutamate, crystalline salt, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed and other granular materials.
03.粉劑類：調味品、奶粉、素食粉、五穀粉、葡萄糖、生粉、麵粉等粉劑物料的包裝。
03. Powders: packaging of condiments, milk powder, vegetarian powder, grain powder, glucose, corn powder, flour and other powder materials.
04.液體類：醬油、米醋、果汁、飲料等液體類物料的包裝。
04. Liquids: packaging of liquid materials such as soy sauce, rice vinegar, fruit juice, and beverages.
05.醬體類：番茄醬、辣椒醬、豆瓣醬等醬體類物料的包裝。
05. Sauce body: packaging of ketchup, chili sauce, bean paste and other sauce body materials.
本機技術參數：The machine technical parameters
| 包裝速度 Packaging speed | 10-50bags/min |
| 總功率 Total power | 2.0KW（單主機 Single host） |
| 包裝尺寸 Package Size | 80-160*110-230（袋寬*袋長Bag width * bag length） |
| 供電電源 Power supply | 380V |
| 整機重量 Total Weight | 800KG |
| 包裝容量 Packing capacity | 10g-500g（視物料而定Depends on the material） |
| 耗氣量 Air consumption | 0.7m3/min |
| 包裝袋類型 Bag type | 四邊封袋、三邊封袋、異形袋、紙袋等各種預製袋 |
| Various prefabricated bags such as four-side sealing bags, three-side sealing bags, special-shaped bags, paper bags, etc. |
本機主要配置：Main configuration of this machine
| 01.氣動元件：Pneumatic components | |
| 給袋汽缸：To bag cylinder | 台灣亞德客AirTAC Taiwan |
| 其他汽缸：Other cylinders | 台灣亞德客AirTAC Taiwan |
| 氣動電磁閥：Pneumatic solenoid valve | 台灣亞德客AirTAC Taiwan |
| 真空壓力表：Vacuum pressure gauge | 台灣亞德客AirTAC Taiwan |
| 氣管、接頭、三聯體：Trachea, joint, triplet | 台灣亞德客AirTAC Taiwan |
| 02.電氣元件：Electrical components | |
| 顯示屏（觸摸屏）：Display (touch screen) | 台灣威倫Weilun |
| 編碼器：Encoder | 日本歐姆龍Omron |
| 變頻器：Frequency converter | 深圳金鍾Shenzhen Admiralty |
| 控製開關、按鈕、繼電器：Control switches, buttons, relays | 法國施耐德Schneider |
| 光電檢測元件：Photoelectric detection element | 奧托尼克斯Autonics |
| PLC： | 億維Edimensional |
| 中間繼電器：Intermediate relay | 美國ABBAmerican ABB |
特點：1、放袋結構 2、送袋裝置 3、自動上袋裝置、 4、機械手夾袋 5、真空開袋 6、充填物料 7、整形 8、封口 9、成品輸送。
Features: 1. Bag placing structure 2. Bag feeding device 3. Automatic bag loading device 4. Manipulator gripping bag 5. Vacuum bag opening 6. Filling material 7. Shaping 8. Sealing 9. Finished product conveying.

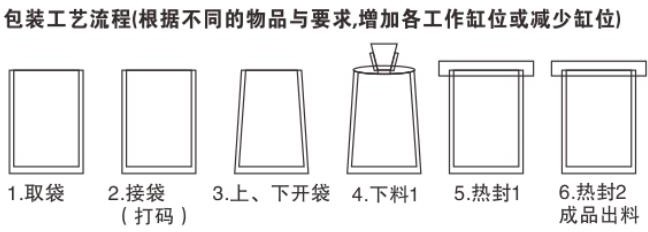

包裝工藝流程圖：Packaging process flow chart
配套粉劑螺杆下料係統示圖：Diagram of supporting powder screw feeding system
配套液體下料係統示圖：Diagram of supporting liquid feeding system

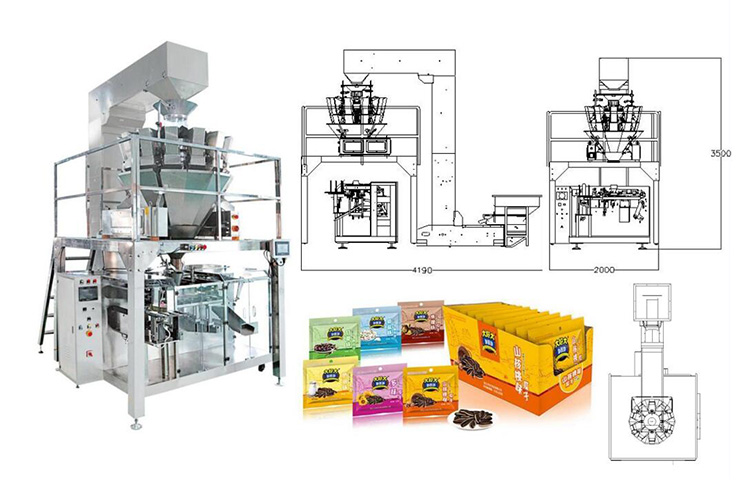

配套顆粒類電子稱下料係統示圖：Diagram of blanking system of supporting particle electronic scale
